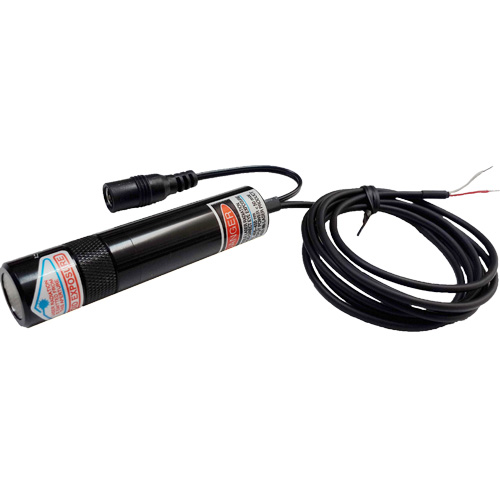

KML-B3XXAGD-FXX-PA(R) SERIES

Blue Line Laser For 3D Image Scanning

Feature：
●Japan's industrial-grade laser diode
●Patented precision focal length adjustable
  structure
●Patented Anti-Gaussian Distribution Lens,
  Lines are evenly distributed
●Industrial design, high stability
●Long life

SPECIFICATIONS：
Model：KML-B320AGD-FXX-PA(R)
Wavelength：Blue 440 ~ 460 nm
Output Power：
　　　　　　< 20 mW
　　　　　　Output Power Adjustable
Project Distance：50 ~ 5000 mm
Line Length：0 ~ 5000 mm

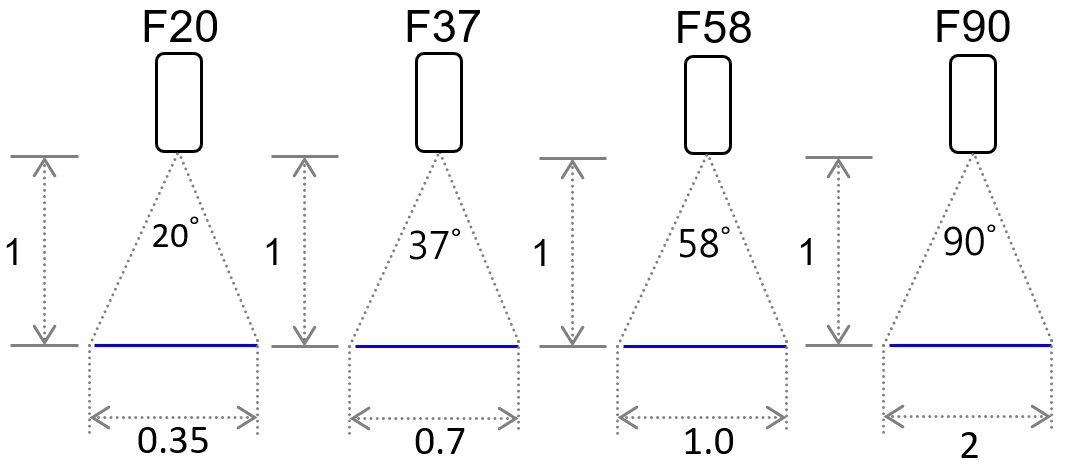

Fan Angle：

Line Thickness：
　　< 0.05 mm @ WD < 100mm
　　< 0.1 mm @ WD < 200mm
　　< 0.2 mm @ WD < 500mm
　　Focus Adjustable / DOF：± 3 mm
Lenses：Glass
Input Voltage：
　Supply：5 ~ 8 VDC
　rigger & Output Power Adj.：0 ~ 3 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 90 (mm)
Weight：89± 5 g

Model：KML-B330AGD-FXX-PA(R)
Wavelength：Blue 440 ~ 460 nm
Output Power：
　　　　　　< 30 mW
　　　　　　Output Power Adjustable
Project Distance：50 ~ 5000 mm
Line Length：0 ~ 5000 mm
Fan Angle：

Line Thickness：
　　< 0.05 mm @ WD < 100mm
　　< 0.1 mm @ WD < 200mm
　　< 0.2 mm @ WD < 500mm
　　Focus Adjustable / DOF：± 3 mm
Lenses：Glass
Input Voltage：
　Supply：5 ~ 8 VDC
　rigger & Output Power Adj.：0 ~ 3 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 90 (mm)
Weight：89± 5 g

Model：KML-B350AGD-FXX-PA(R)
Wavelength：Blue 440 ~ 460 nm
Output Power：
　　　　　　< 50 mW
　　　　　　Output Power Adjustable
Project Distance：50 ~ 5000 mm
Line Length：0 ~ 5000 mm
Fan Angle：

Line Thickness：
　　< 0.05 mm @ WD < 100mm
　　< 0.1 mm @ WD < 200mm
　　< 0.2 mm @ WD < 500mm
　　Focus Adjustable / DOF：± 3 mm
Lenses：Glass
Input Voltage：
　Supply：5 ~ 8 VDC
　rigger & Output Power Adj.：0 ~ 3 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 90 (mm)
Weight：89± 5 g

Remarks：
1.The line length and line width of the
　projection will vary depending on the
　projection distance, angle, material,
　color or illumination.
2.Special specifications can be requested.
